Harrier

1967-2003

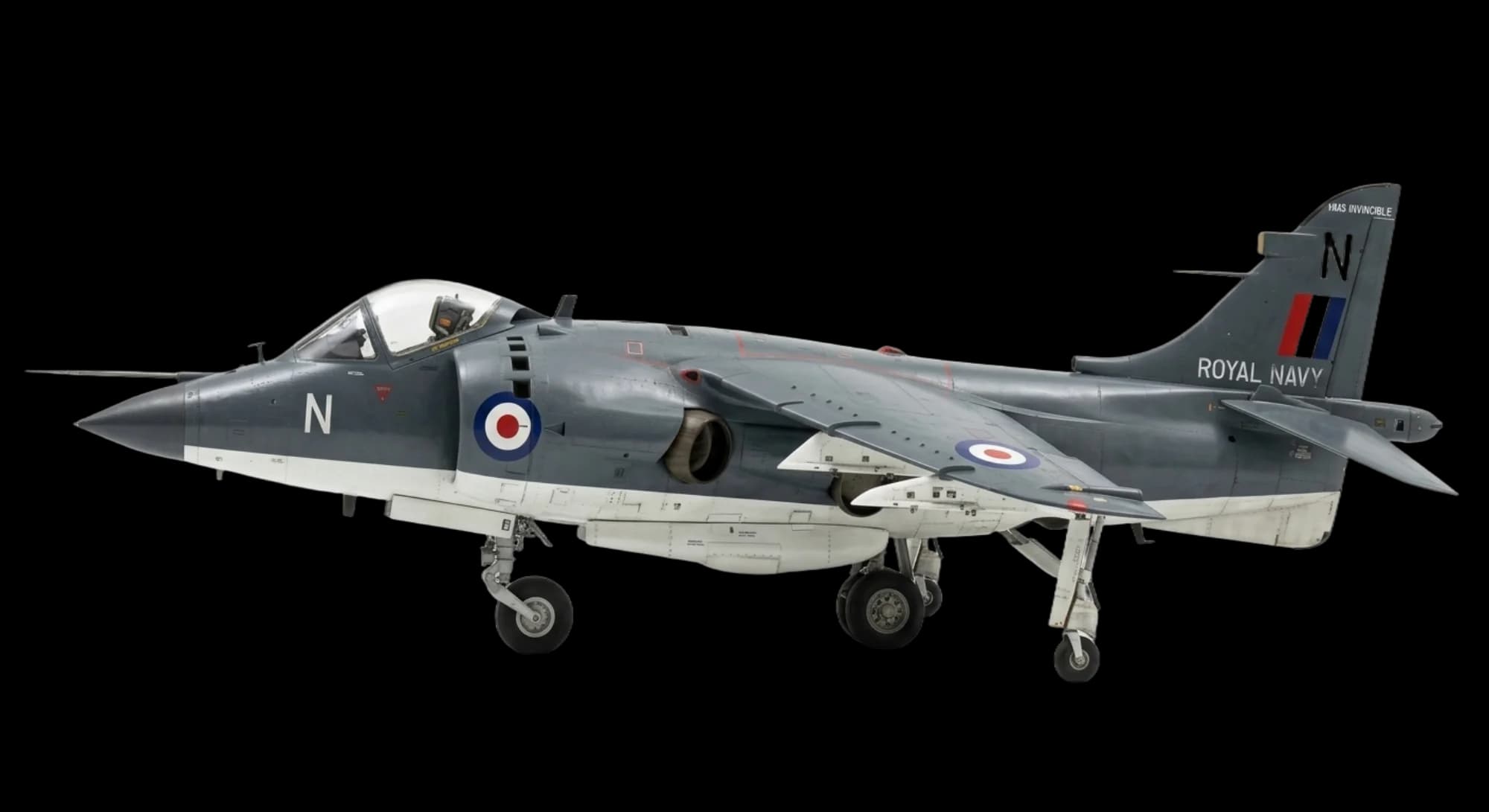

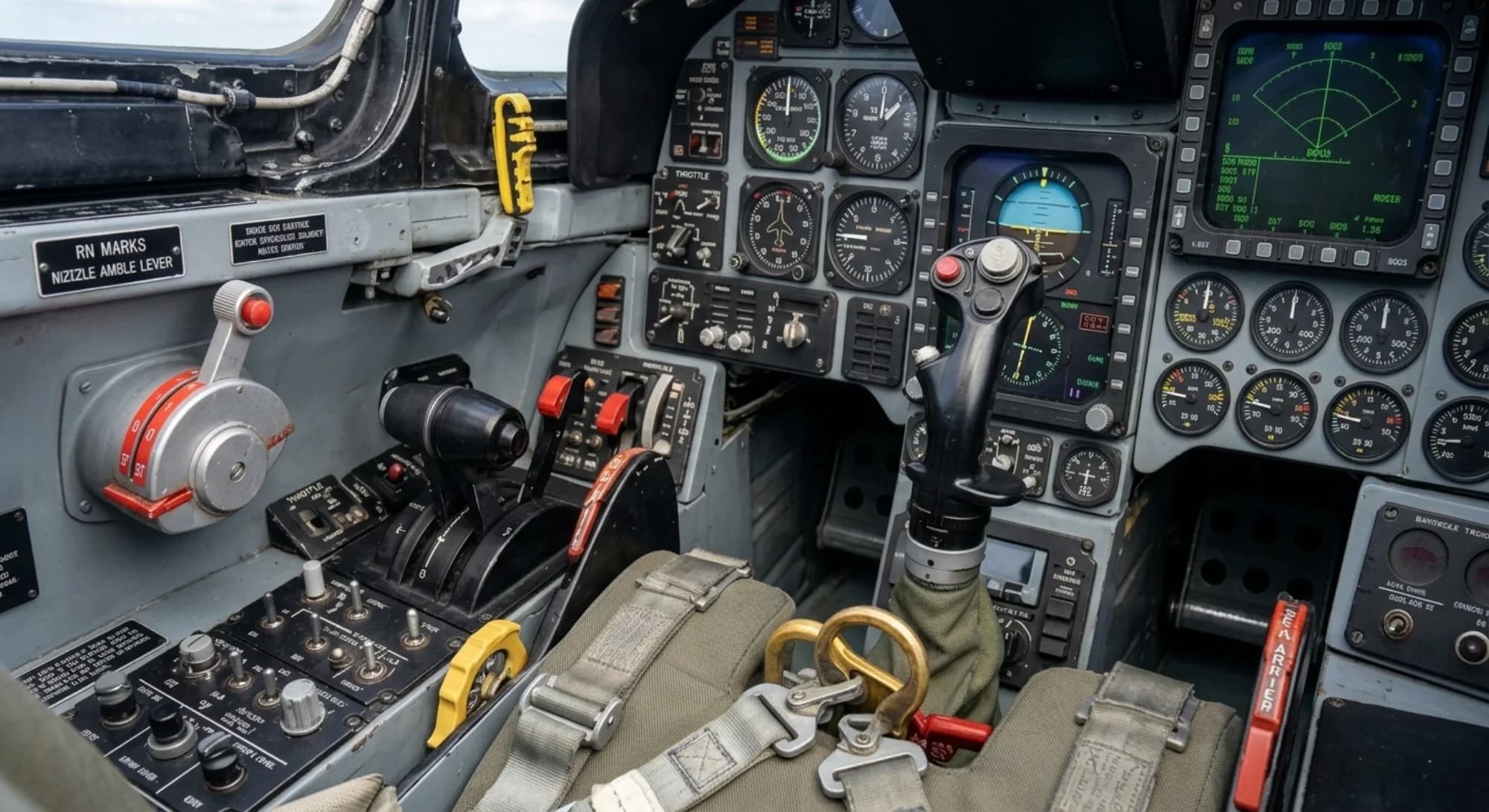

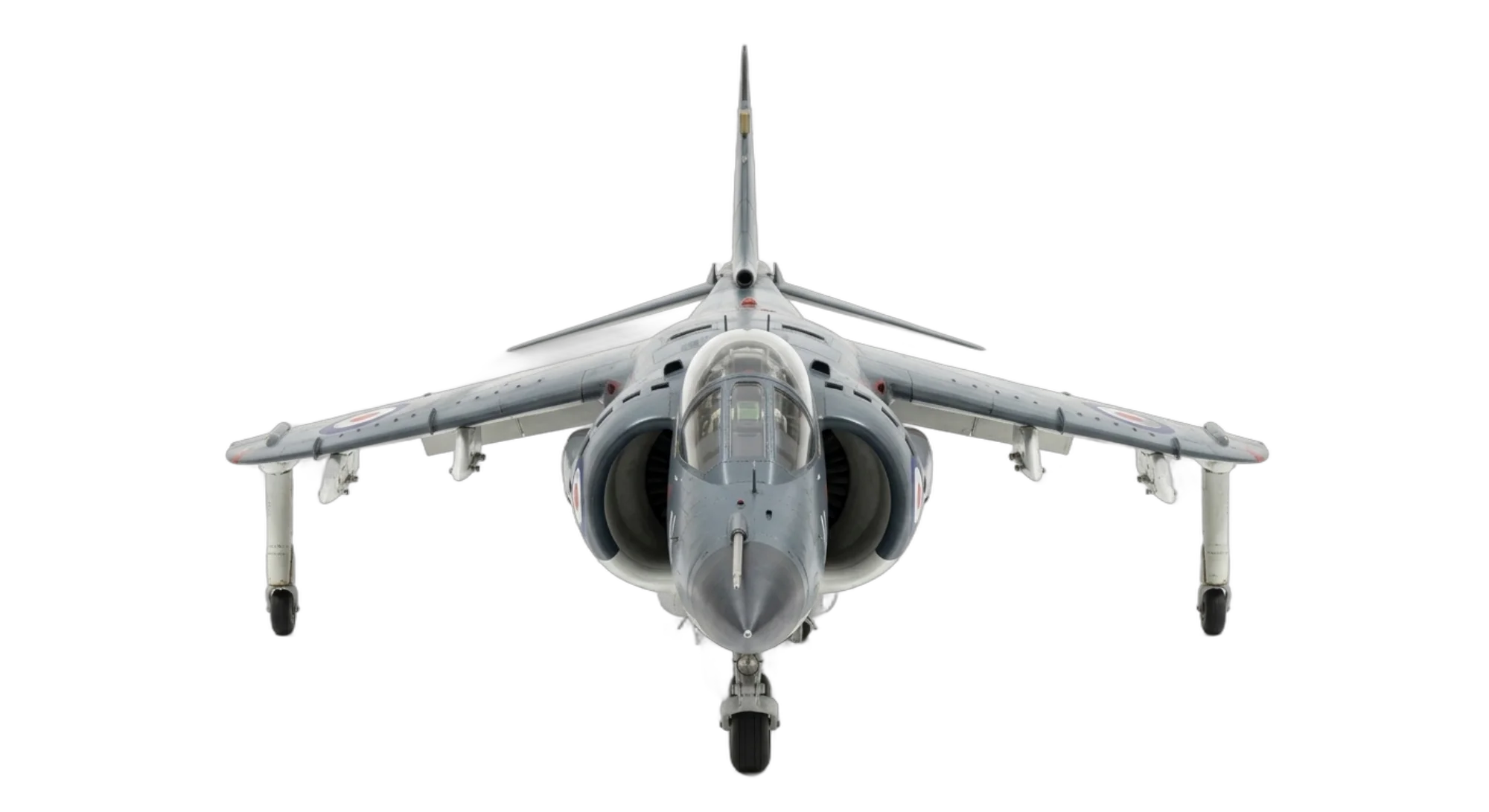

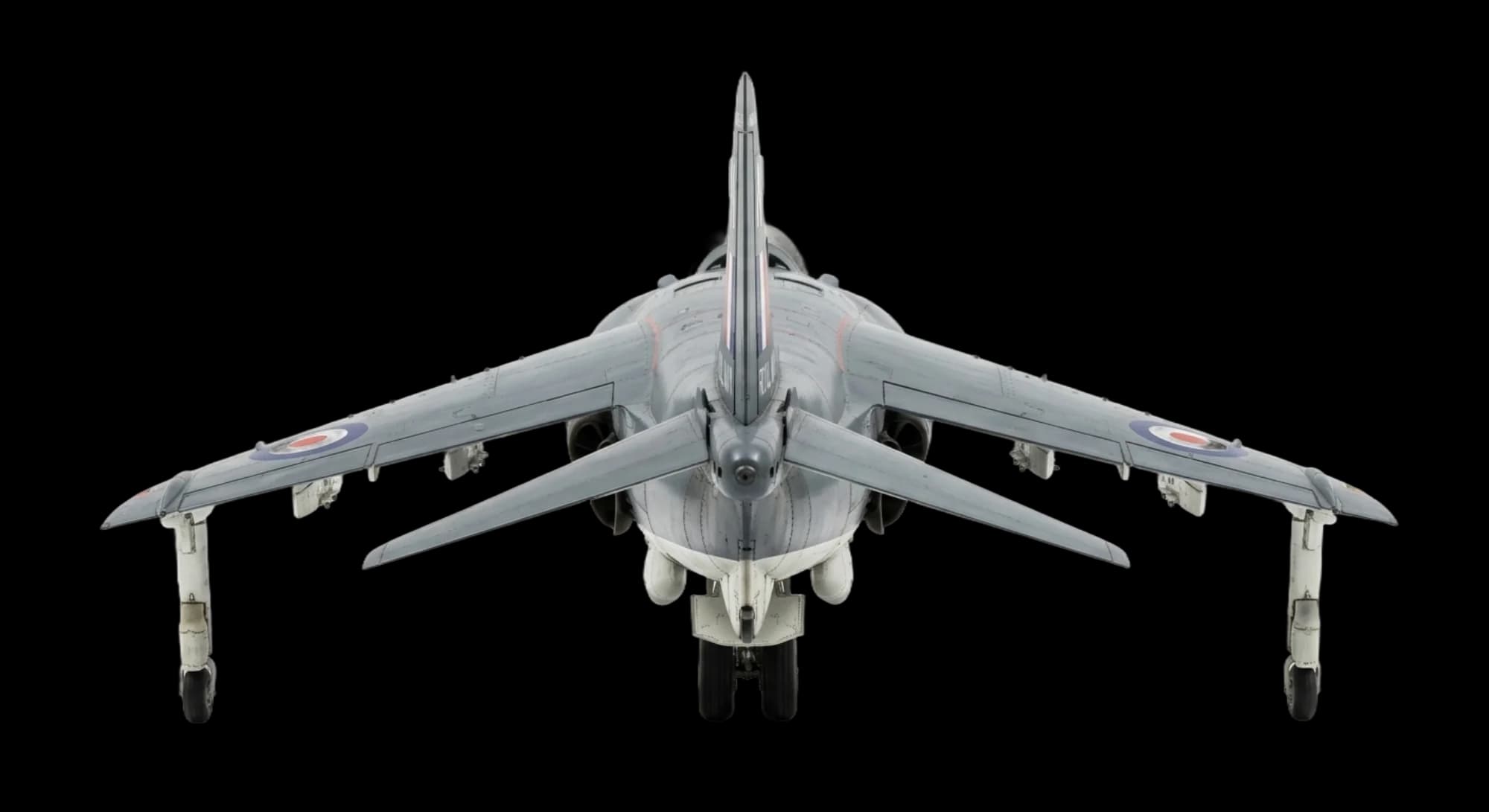

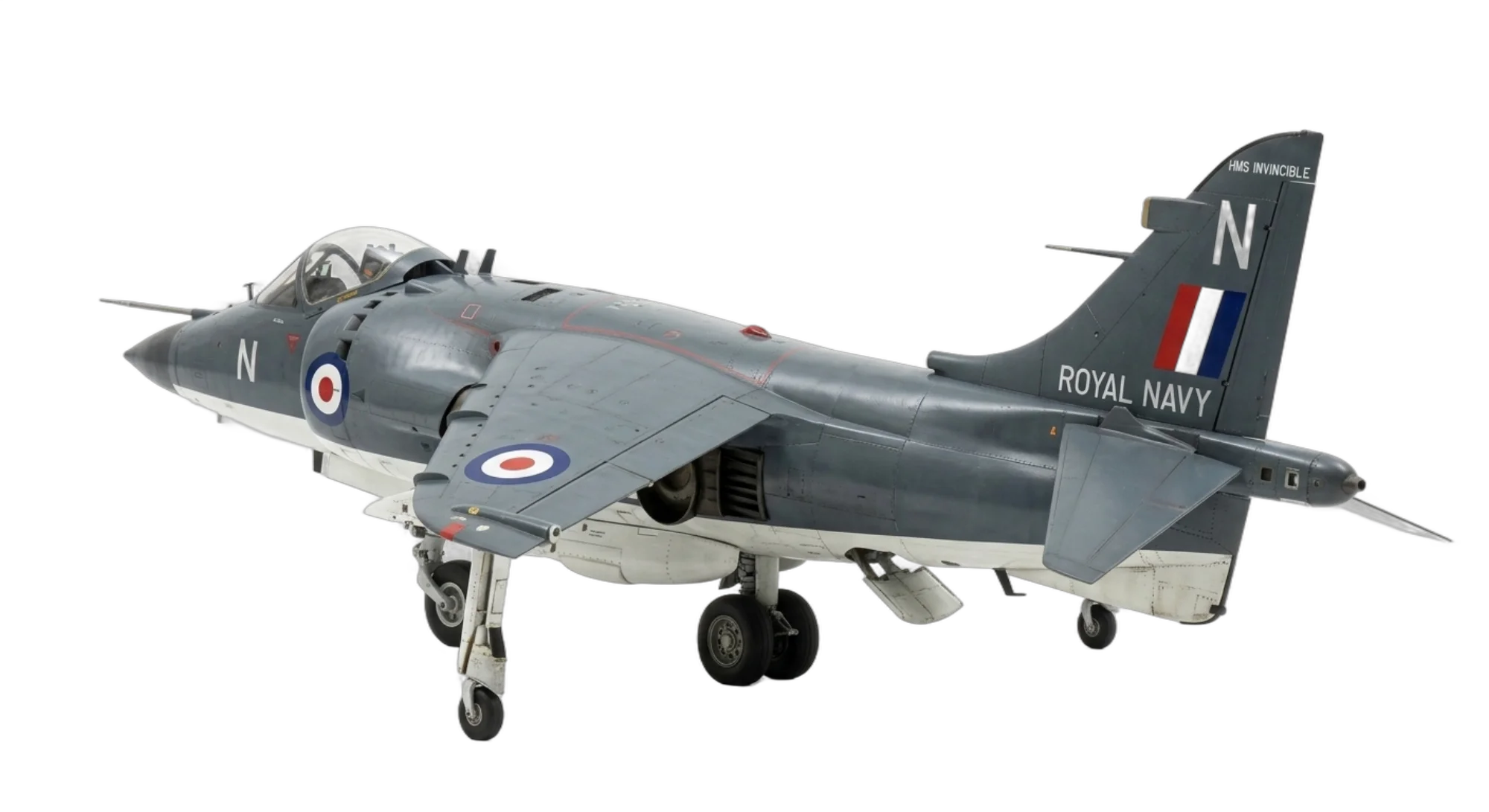

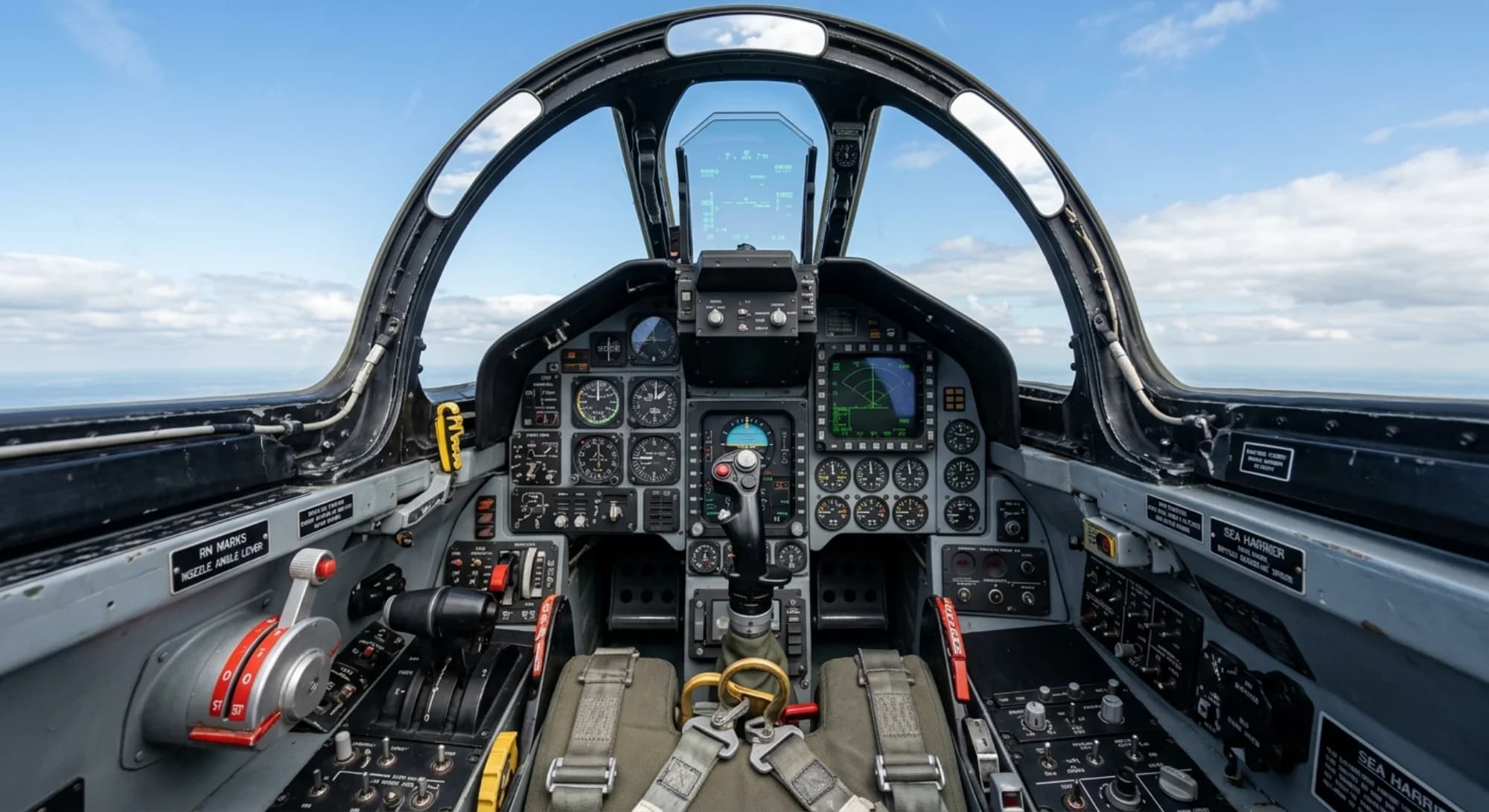

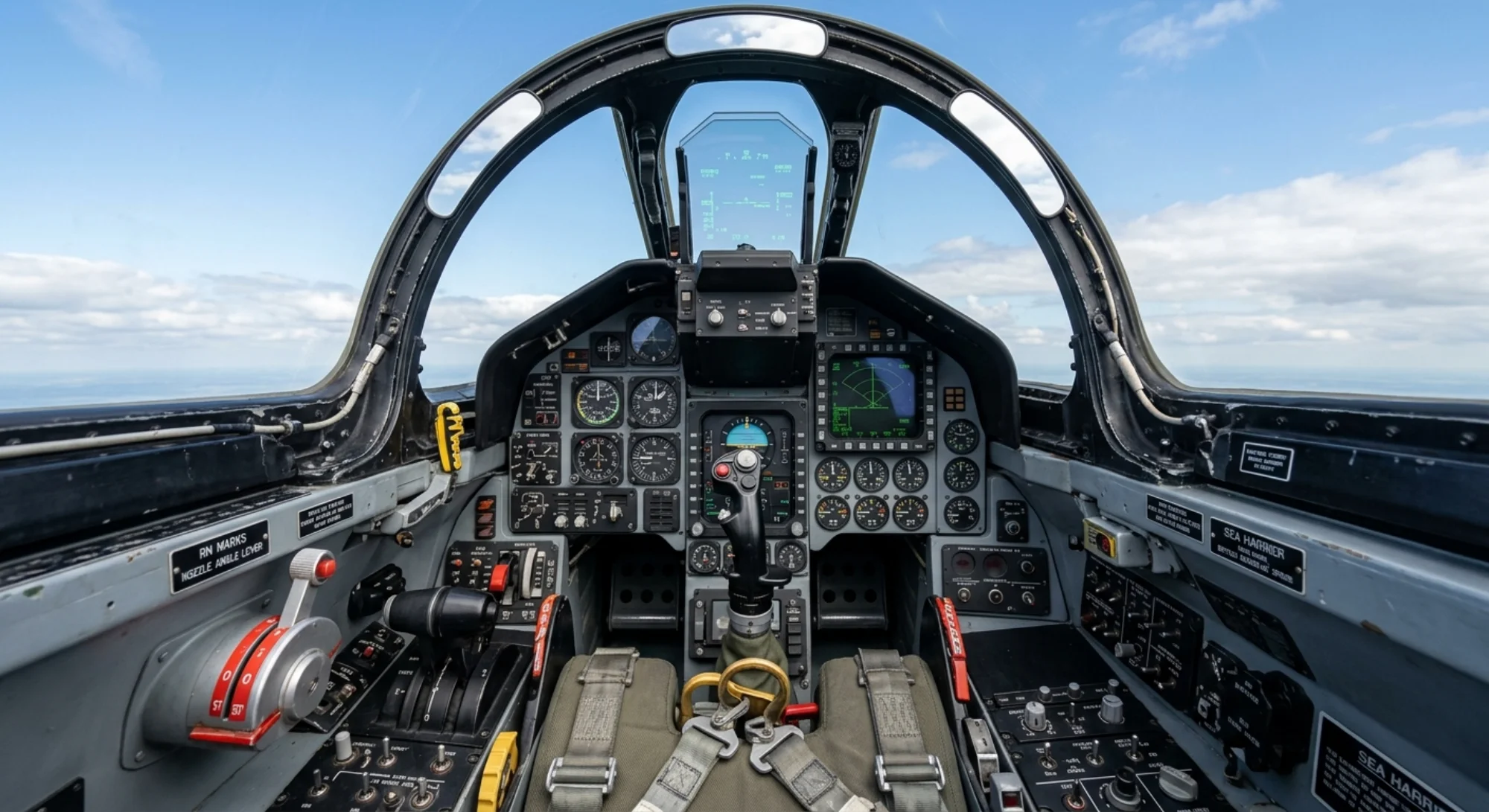

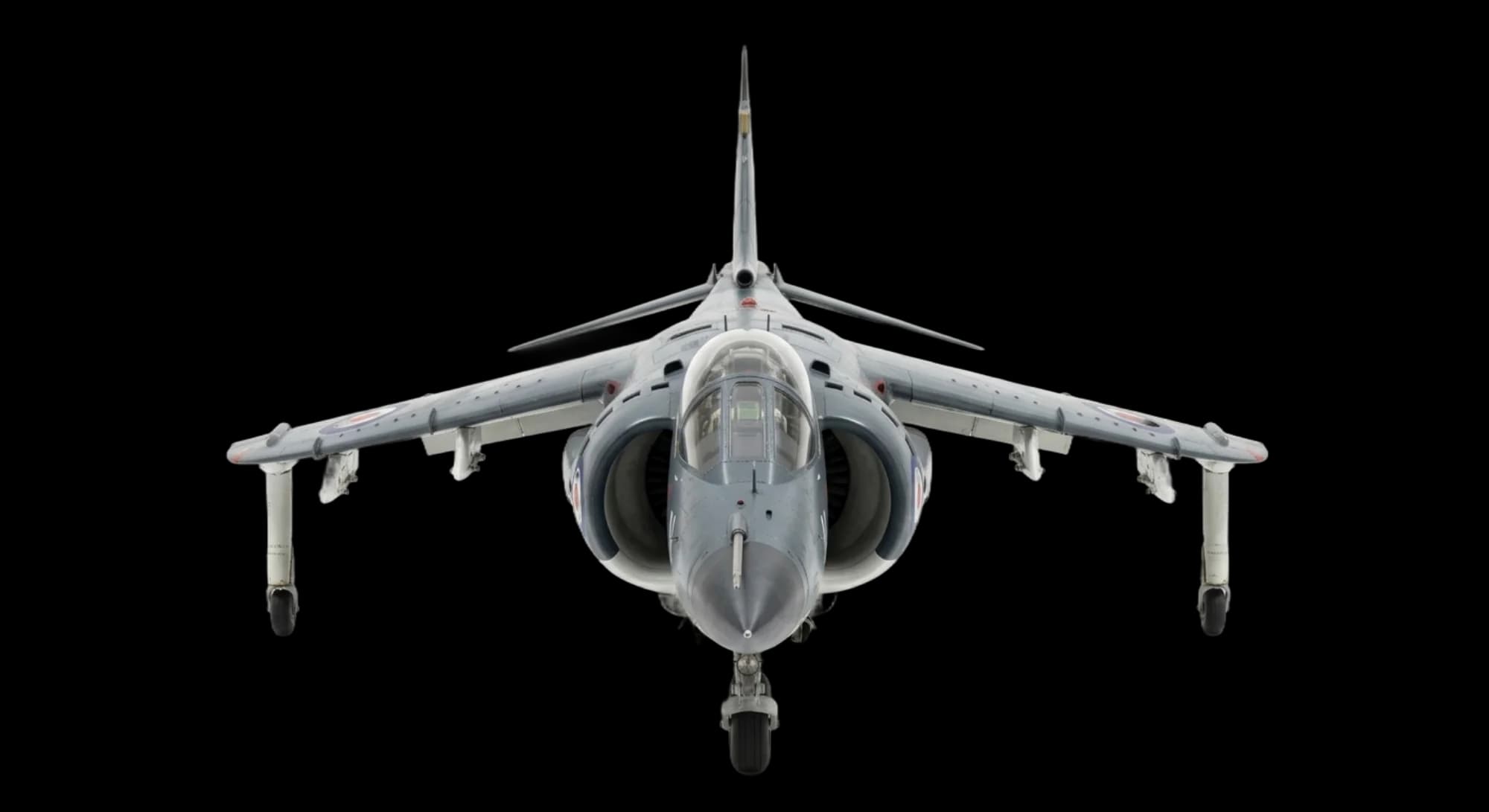

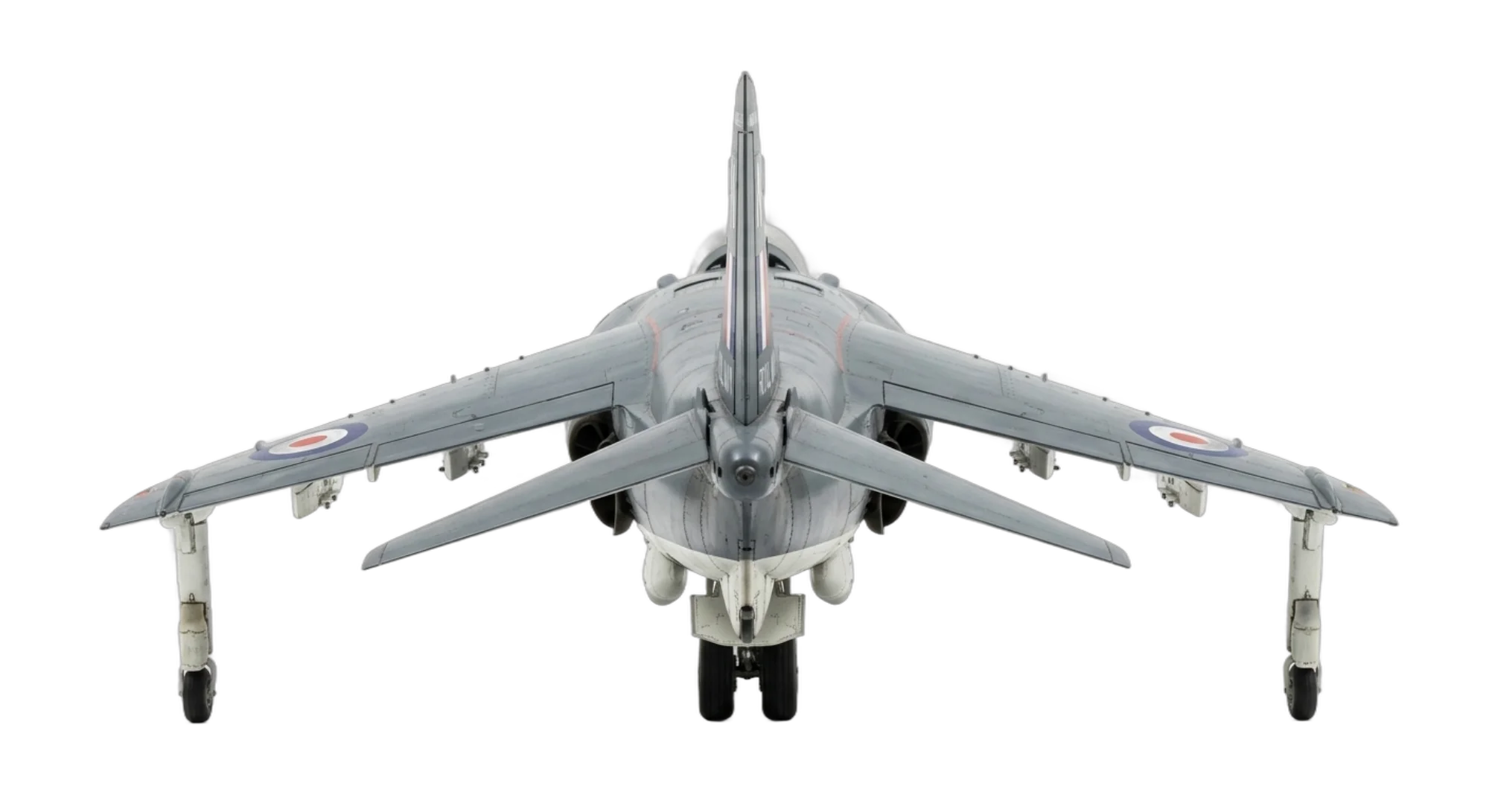

Hawker Siddeley Harrier 1967 - Front 3/4 viewHawker Siddeley Harrier 1967 - Front viewHawker Siddeley Harrier 1967 - Profile viewHawker Siddeley Harrier 1967 - Rear 3/4 viewHawker Siddeley Harrier 1967 - Rear viewHawker Siddeley Harrier 1967 - Cockpit viewHawker Siddeley Harrier 1967 - Instrument Detail view

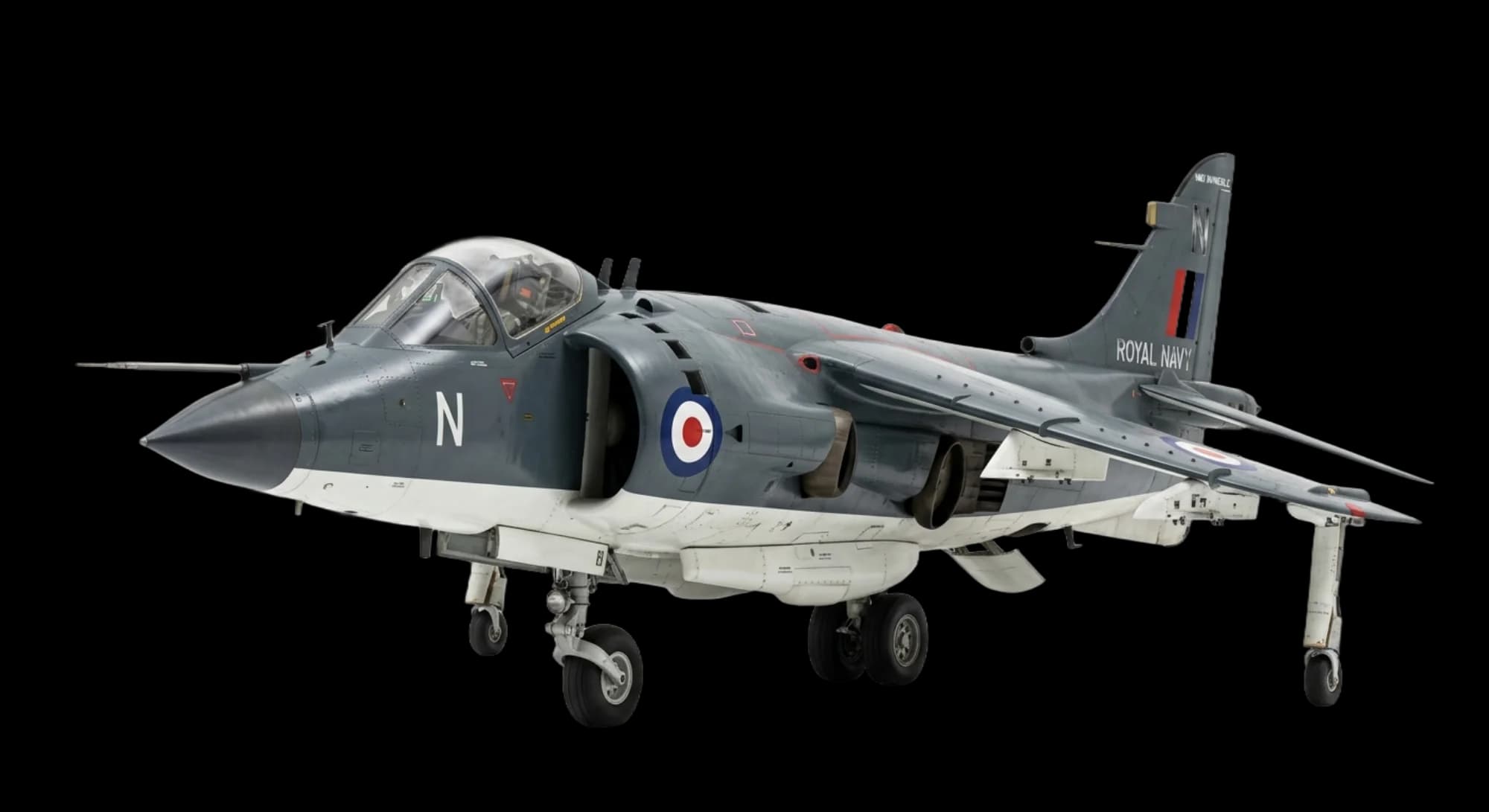

Front 3/4
First of its kind

The worlds first operational VTOL/STOVL fixed-wing attack aircraft. Proved the concept of vertical takeoff jet fighters in combat during the Falklands War.

History

The Hawker Siddeley Harrier was the revolutionary result of decades of research into vertical takeoff and landing jet aircraft. Its Rolls-Royce Pegasus engine uses four rotating nozzles to vector thrust from horizontal flight to vertical lift. The Harrier proved its worth spectacularly during the 1982 Falklands War, where Sea Harriers achieved a 20-0 kill ratio in air combat. The aircraft could operate from small clearings, ships, and improvised forward bases without conventional runways. The concept was further developed into the AV-8B Harrier II and influenced the Lockheed Martin F-35B.

Timeline

1967First flight
1982The Harrier proved its worth spectacularly during the 1982 Falklands War
2003Retired from service

Production & Heritage

Production Total824
DesignerSidney Camm / Ralph Hooper
Service Period1967-2003

Technical Specifications

Engine1x Rolls-Royce Pegasus Mk 103 vectored-thrust turbofan
Max Speed730 mph
Range260 nm
Ceiling50,000 ft
Crew1
Wingspan25.3 ft
Length46.3 ft
Empty Weight13,535 lbs
Max Weight26,000 lbs

Engine Details

Engine ModelRolls-Royce Pegasus Mk 103
Engine Count1
Engine ManufacturerRolls-Royce
Thrust21500 lbs

Performance

Max Speed (Mach)Mach 0.96
Cruise Speed547 mph
Rate of Climb14700 ft/min

Dimensions

Wing Area201 sq ft

Weights

Max Takeoff Weight26,000 lbs

Armament

Guns2x 30mm ADEN cannon pods
Missiles2x AIM-9 Sidewinder
Bombs5,000 lbs on 5 hardpoints

Capacity

Crew1

Tags

Designed by Sidney Camm / Ralph Hooper
