F/A-18 Hornet

1978

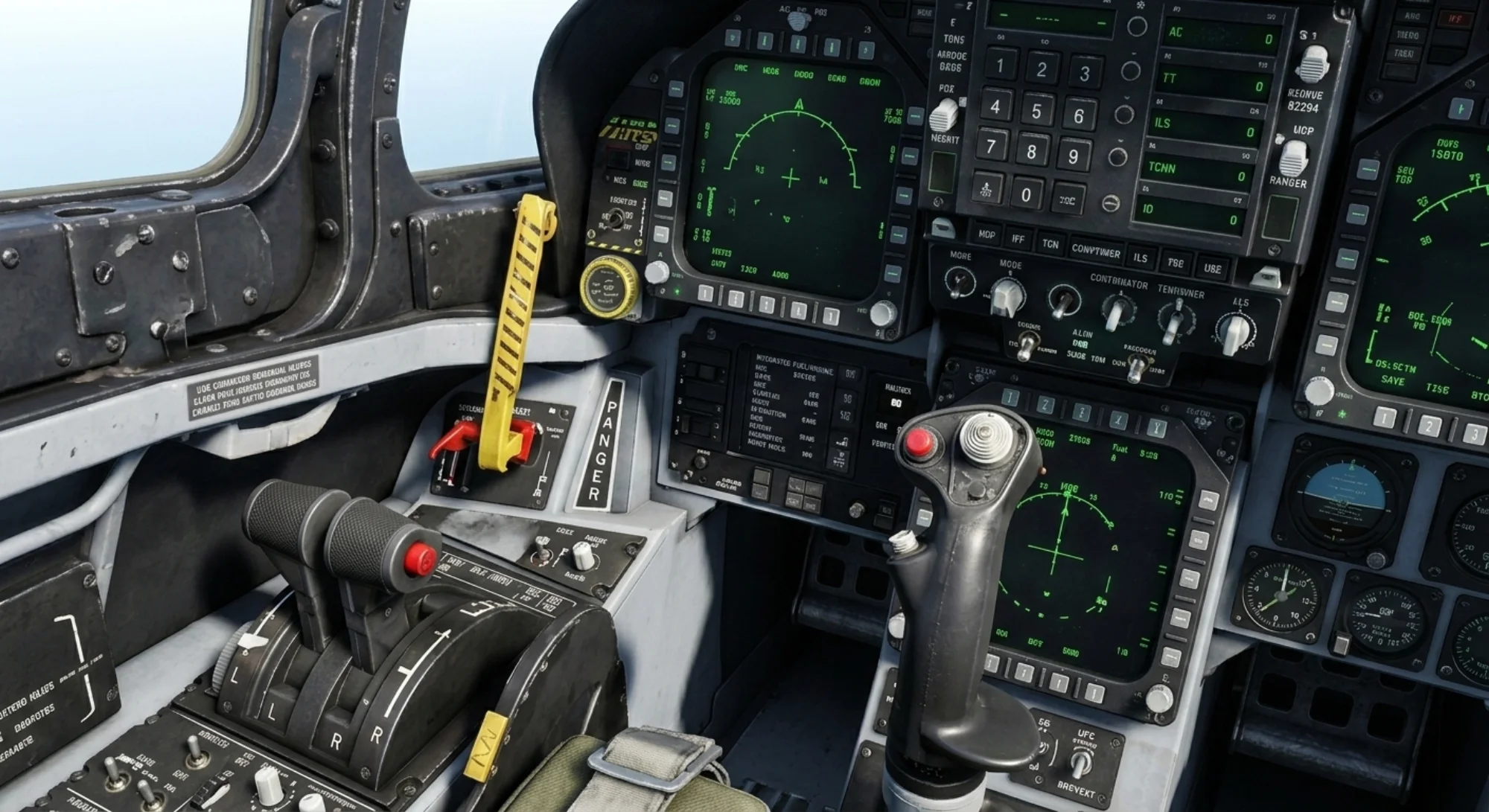

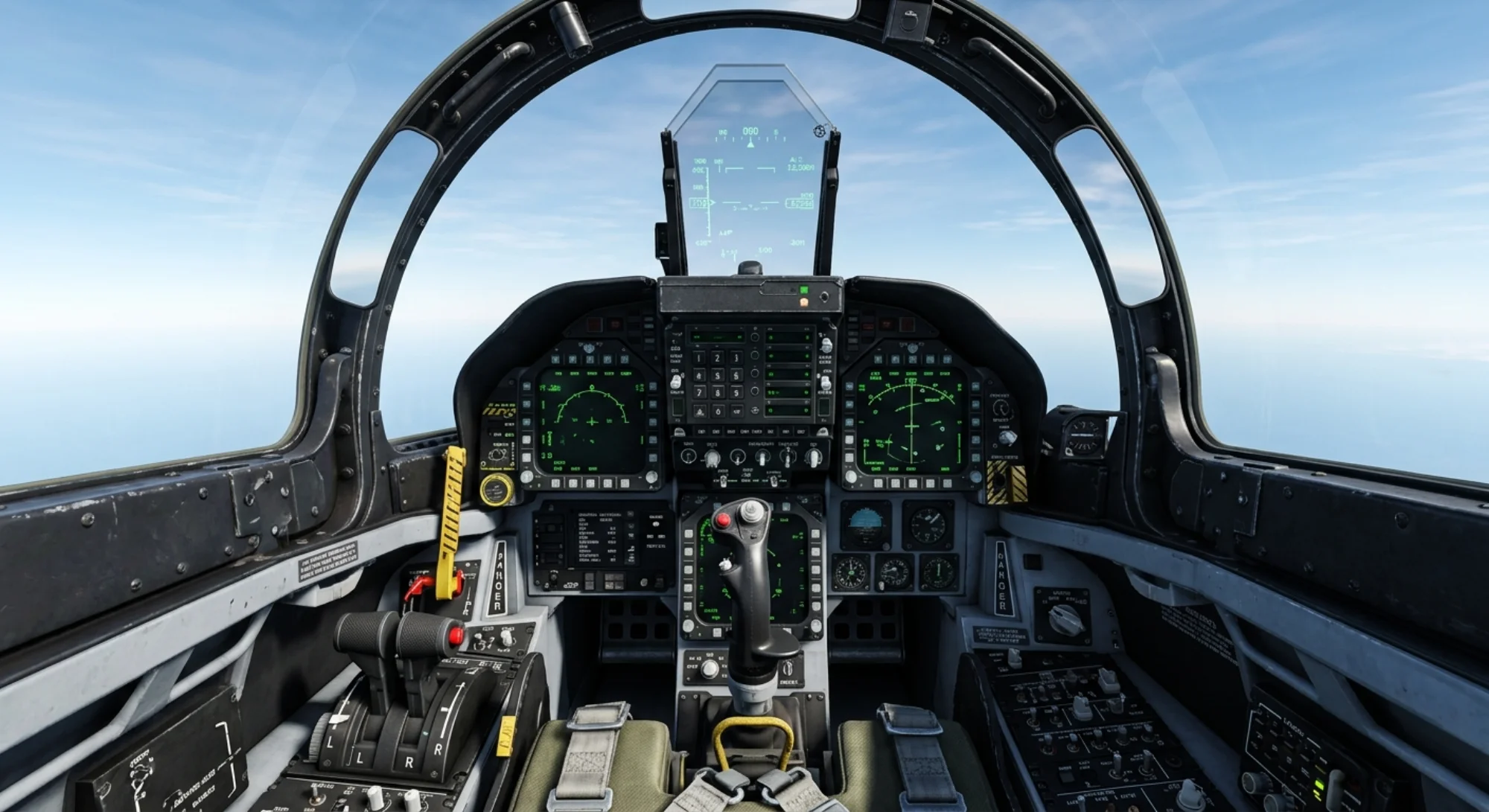

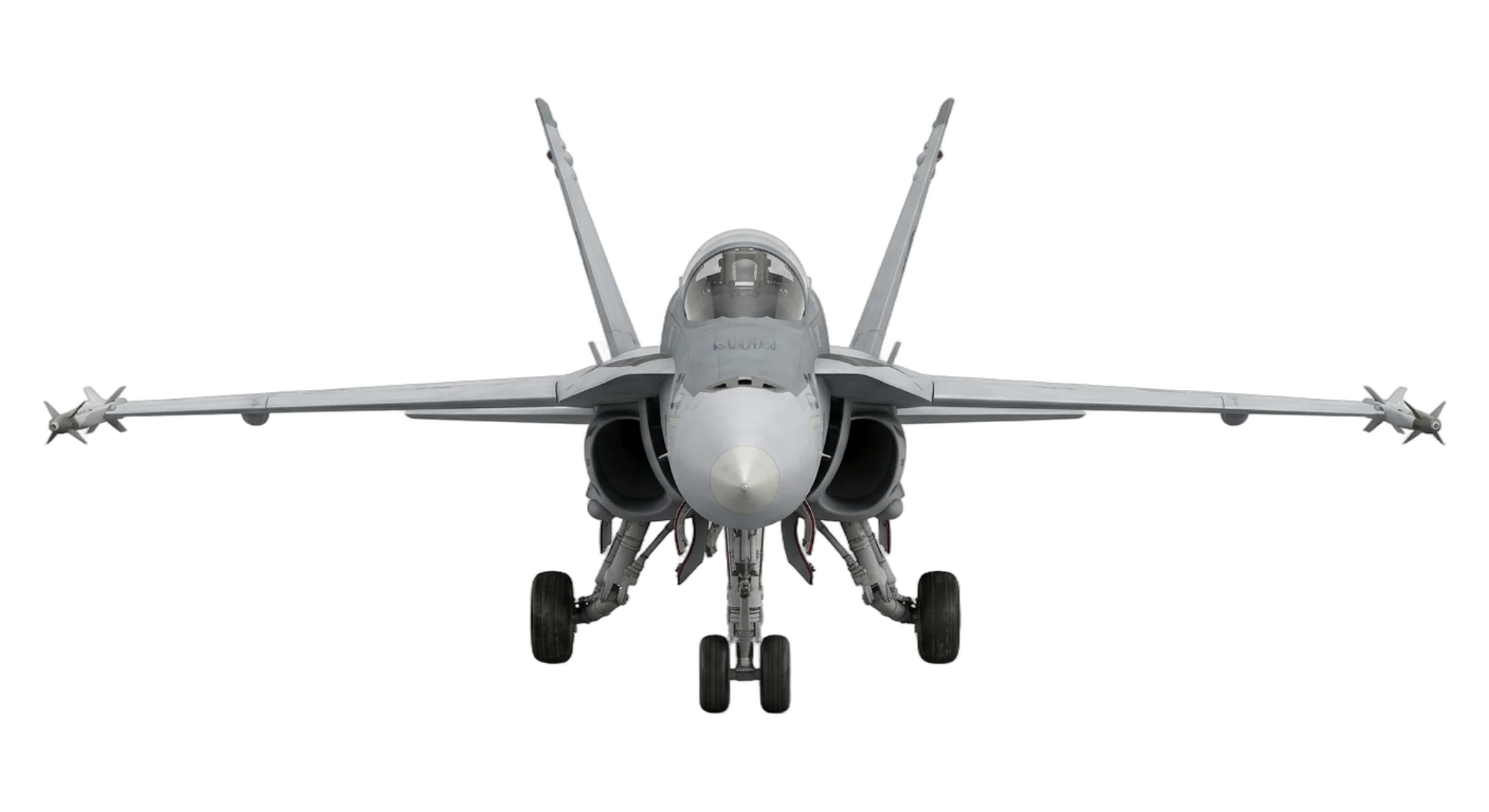

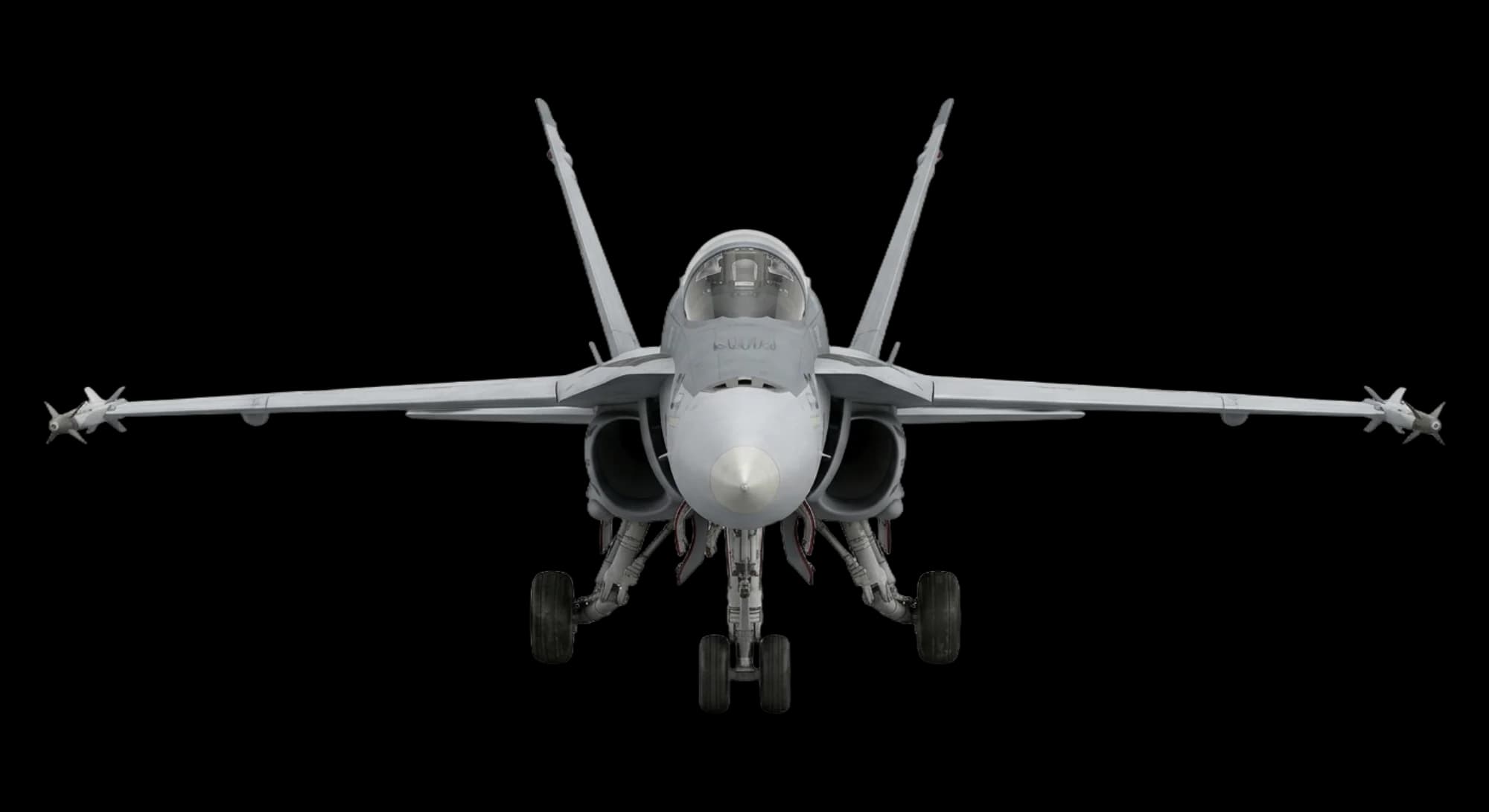

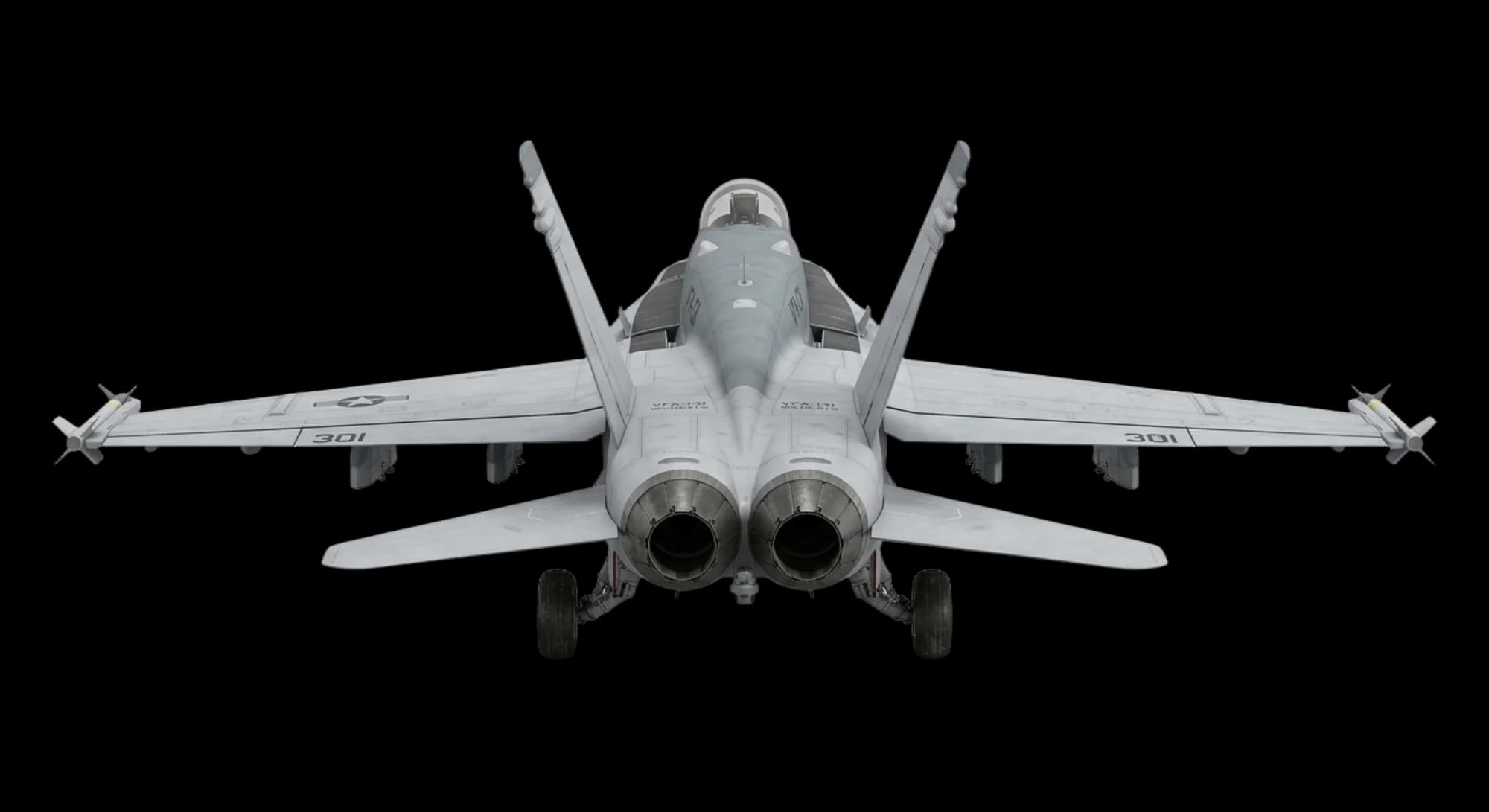

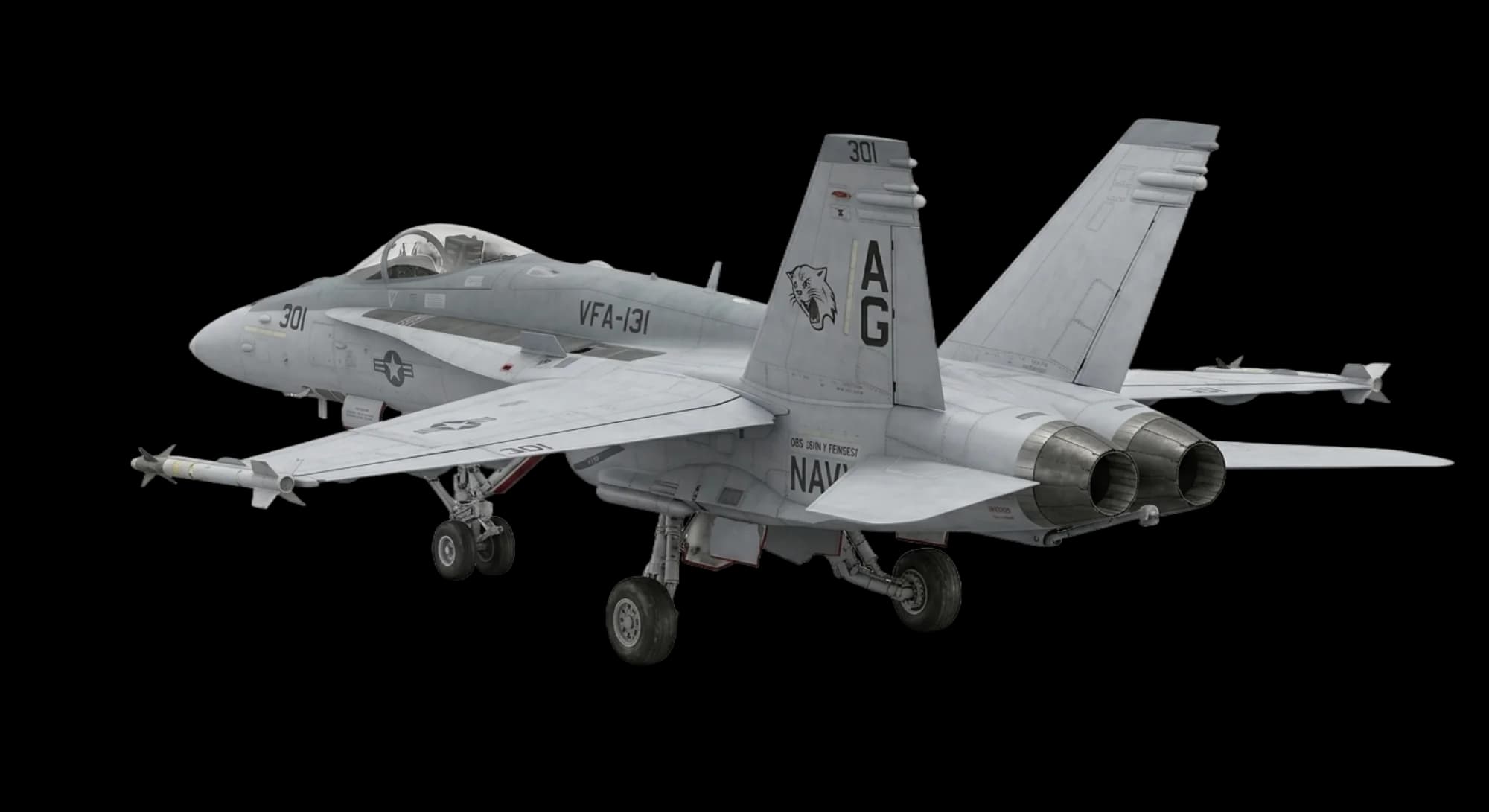

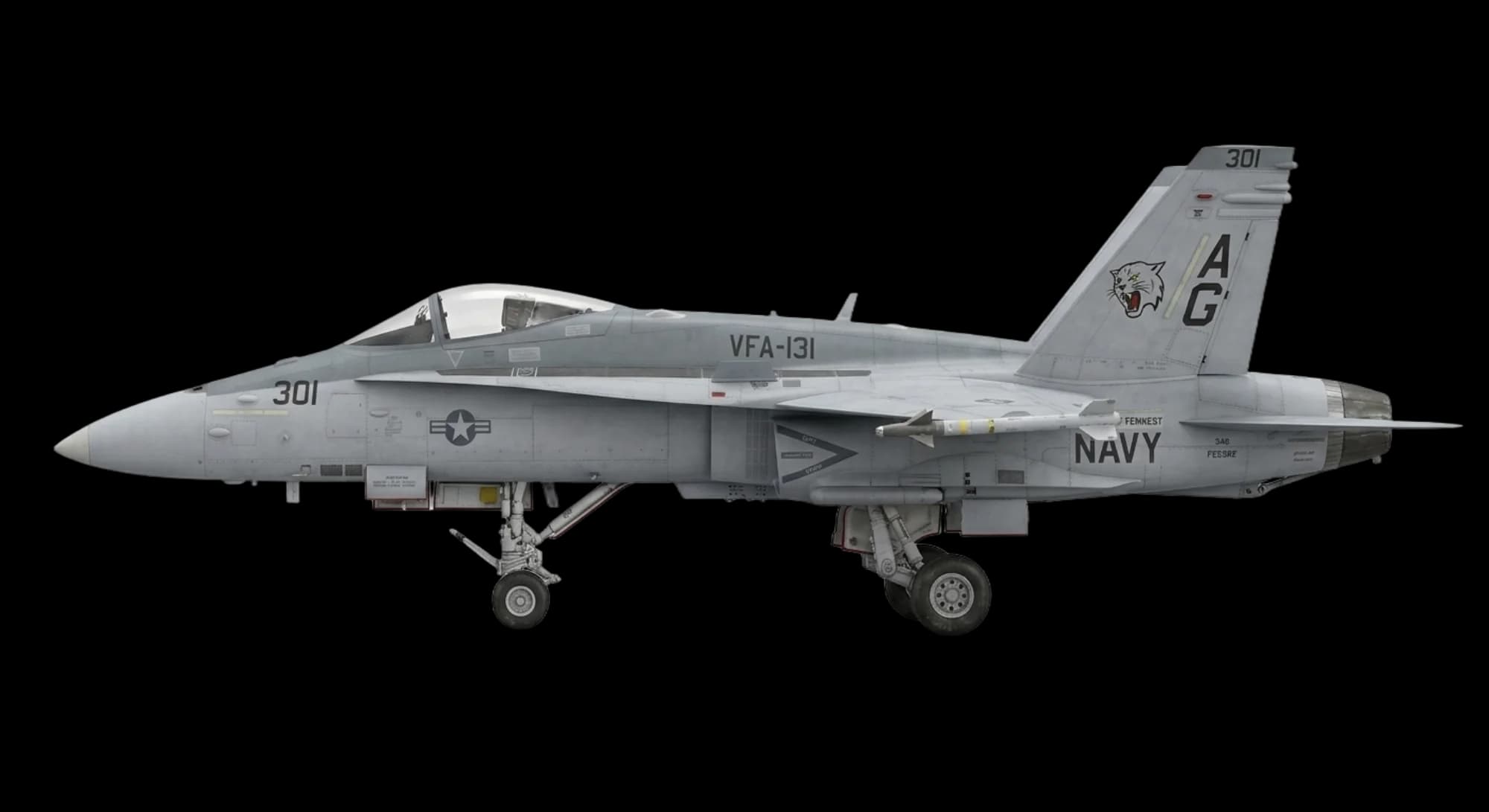

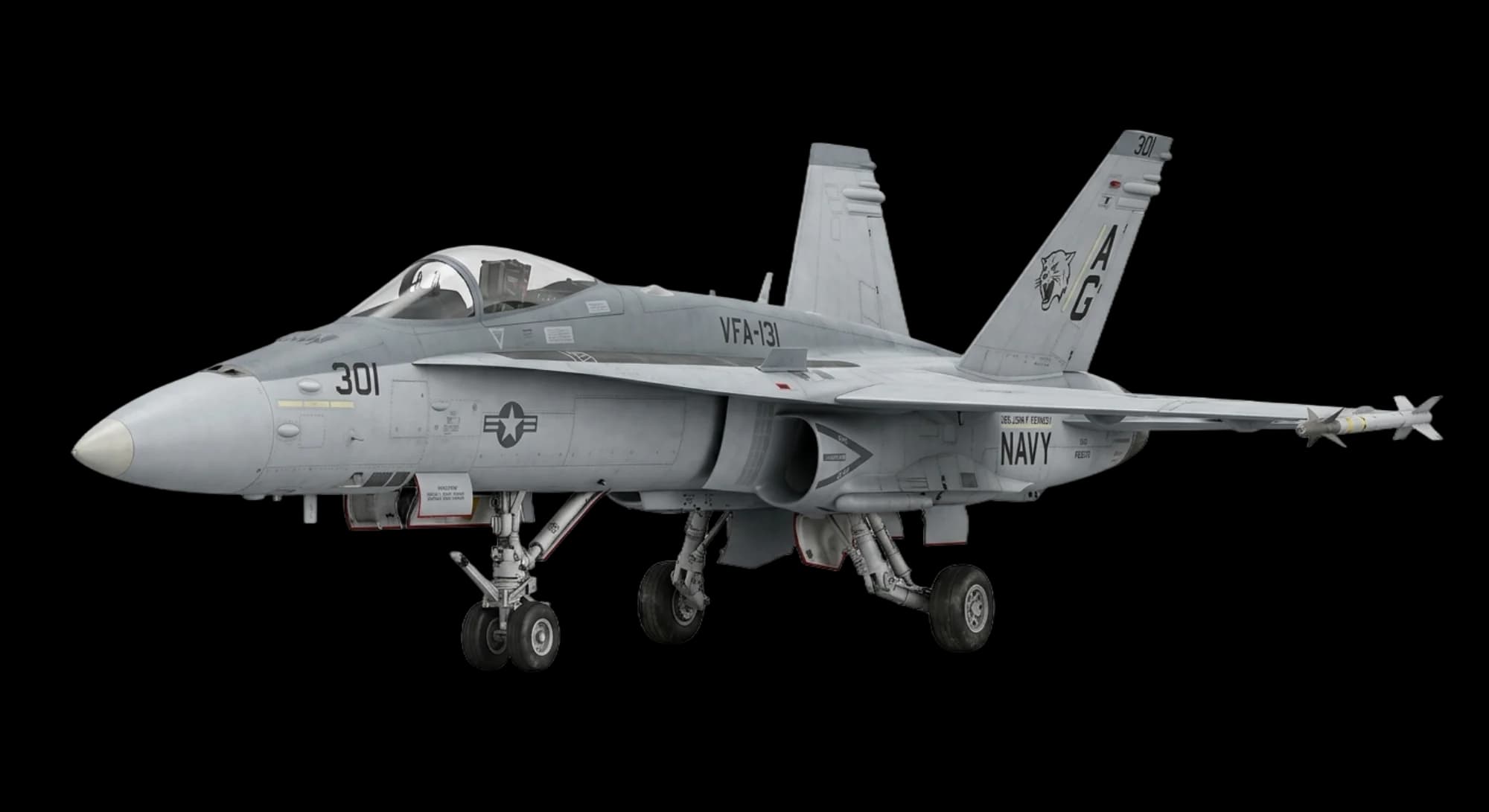

McDonnell Douglas F/A-18 Hornet 1978 - Front 3/4 viewMcDonnell Douglas F/A-18 Hornet 1978 - Front viewMcDonnell Douglas F/A-18 Hornet 1978 - Profile viewMcDonnell Douglas F/A-18 Hornet 1978 - Rear 3/4 viewMcDonnell Douglas F/A-18 Hornet 1978 - Rear viewMcDonnell Douglas F/A-18 Hornet 1978 - Cockpit viewMcDonnell Douglas F/A-18 Hornet 1978 - Instrument Detail view
Front 3/4
Combat proven

The aircraft that proved a single airframe could excel at both fighter and attack missions. The backbone of US Navy carrier aviation for three decades.

History

The McDonnell Douglas F/A-18 Hornet was developed from the Northrop YF-17 Cobra that lost the Lightweight Fighter competition to the F-16. The Navy selected it as a dual-role fighter/attack aircraft to replace both the F-4 Phantom and A-7 Corsair II. The F/A-18 designation reflected its ability to switch between air-to-air and air-to-ground missions with the flip of a switch. It proved its versatility in the 1991 Gulf War when Hornets dropped bombs on an Iraqi airfield and then shot down two MiGs on the same mission. The Super Hornet variant remains the US Navys primary carrier aircraft.

Timeline

1978First flight
1991It proved its versatility in the 1991 Gulf War when Hornets dropped bombs on an Iraqi...

Production & Heritage

Production Total1,480
DesignerLee Begin
Service Period1978

Technical Specifications

Engine2x General Electric F404-GE-402 afterburning turbofan
Max Speed1190 mph
Range1089 nm
Ceiling50,000 ft
Crew1
Wingspan40.4 ft
Length56 ft
Empty Weight23,050 lbs
Max Weight51,900 lbs

Engine Details

Engine ModelGeneral Electric F404-GE-402
Engine Count2
Engine ManufacturerGeneral Electric
Thrust17700 lbs

Performance

Max Speed (Mach)Mach 1.8
Cruise Speed575 mph
Rate of Climb45000 ft/min

Dimensions

Wing Area400 sq ft

Weights

Max Takeoff Weight51,900 lbs

Armament

Guns1x 20mm M61A1 Vulcan rotary cannon
Missiles2x AIM-9 Sidewinder and 2x AIM-7 Sparrow or AIM-120 AMRAAM
Bombs13,700 lbs on 9 hardpoints

Capacity

Crew1

Tags

Designed by Lee Begin
