Consolidated B-24 Liberator
1939-1953

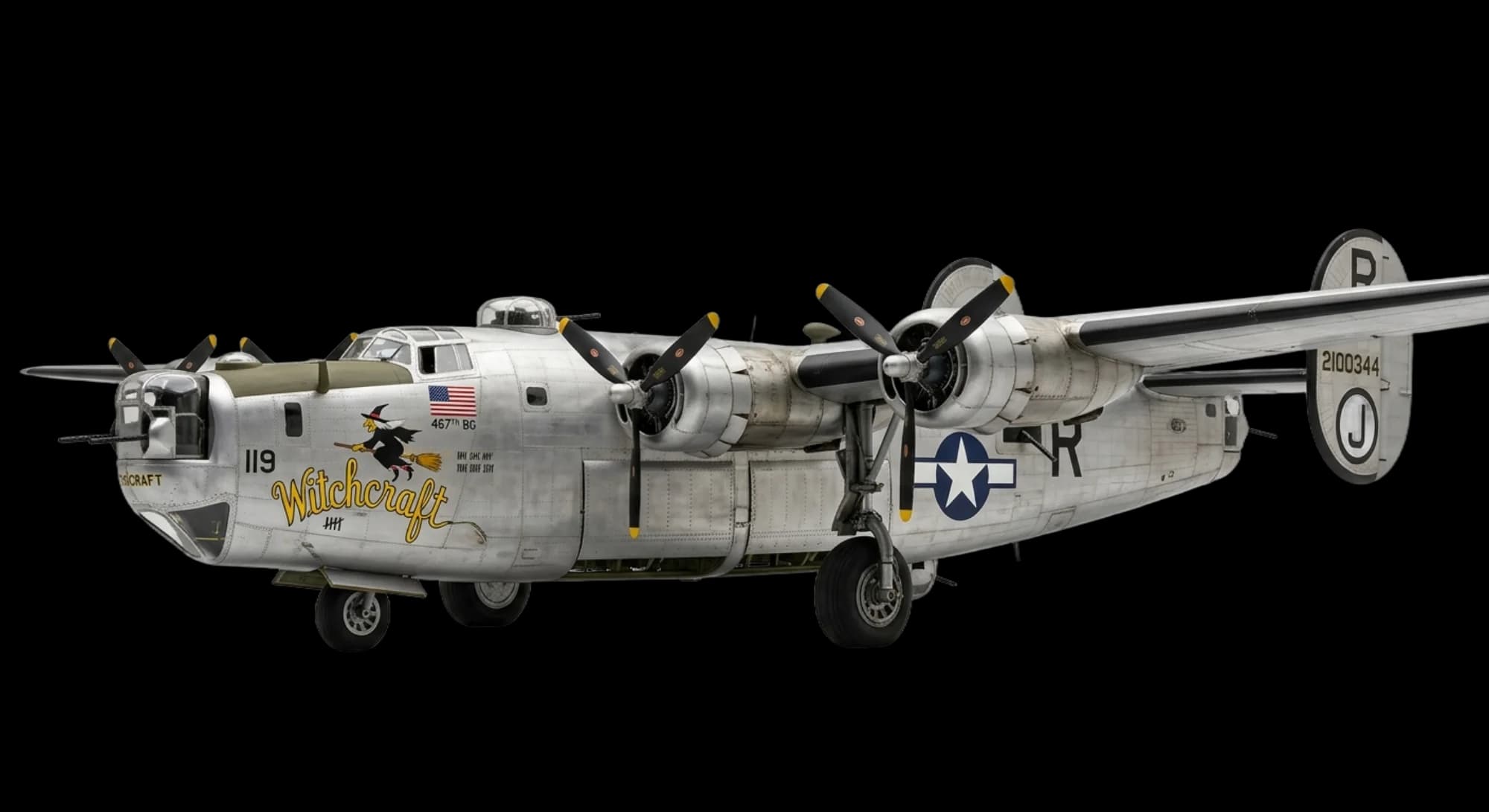

Front 3/4Click to expand
Most produced
The most-produced American military aircraft in history with over 18,400 built. It served in every theater of WWII.
History
The Consolidated B-24 Liberator was the most-produced heavy bomber, the most-produced military aircraft, and the most-produced American aircraft of all time. Its high-aspect-ratio Davis wing gave it greater range and speed than the B-17, though crews found it less able to absorb battle damage. B-24s flew the famous low-level raid on the Ploesti oil refineries in Romania in 1943. They served in every theater of WWII in roles including heavy bombing, maritime patrol, cargo transport, and fuel delivery. Despite its numbers and contribution, it has always lived in the shadow of the more photogenic B-17.
Timeline
1939First flight
1943B-24s flew the famous low-level raid on the Ploesti oil refineries in Romania in 1943
1953Retired from service
Production & Heritage
Production Total18,482
DesignerIsaac M. Laddon
Service Period1939-1953
Technical Specifications
Engine4x Pratt & Whitney R-1830 Twin Wasp radial
Max Speed290 mph
Range1540 nm
Ceiling28,000 ft
Crew10
Wingspan110 ft
Length67.2 ft
Empty Weight36,500 lbs
Max Weight65,000 lbs
Engine Details
Engine ModelPratt & Whitney R-1830 Twin Wasp radial
Engine Count4
Engine ManufacturerPratt & Whitney
Horsepower4800 hp
Performance
Cruise Speed215 mph
Dimensions
Wing Area1048 sq ft
Weights
Max Takeoff Weight65,000 lbs
Armament
Guns10x .50 cal M2 Browning machine guns
Bombs8,000 lbs of bombs
Capacity
Crew10
Tags
Designed by Isaac M. Laddon
