AH-64 Apache

1975

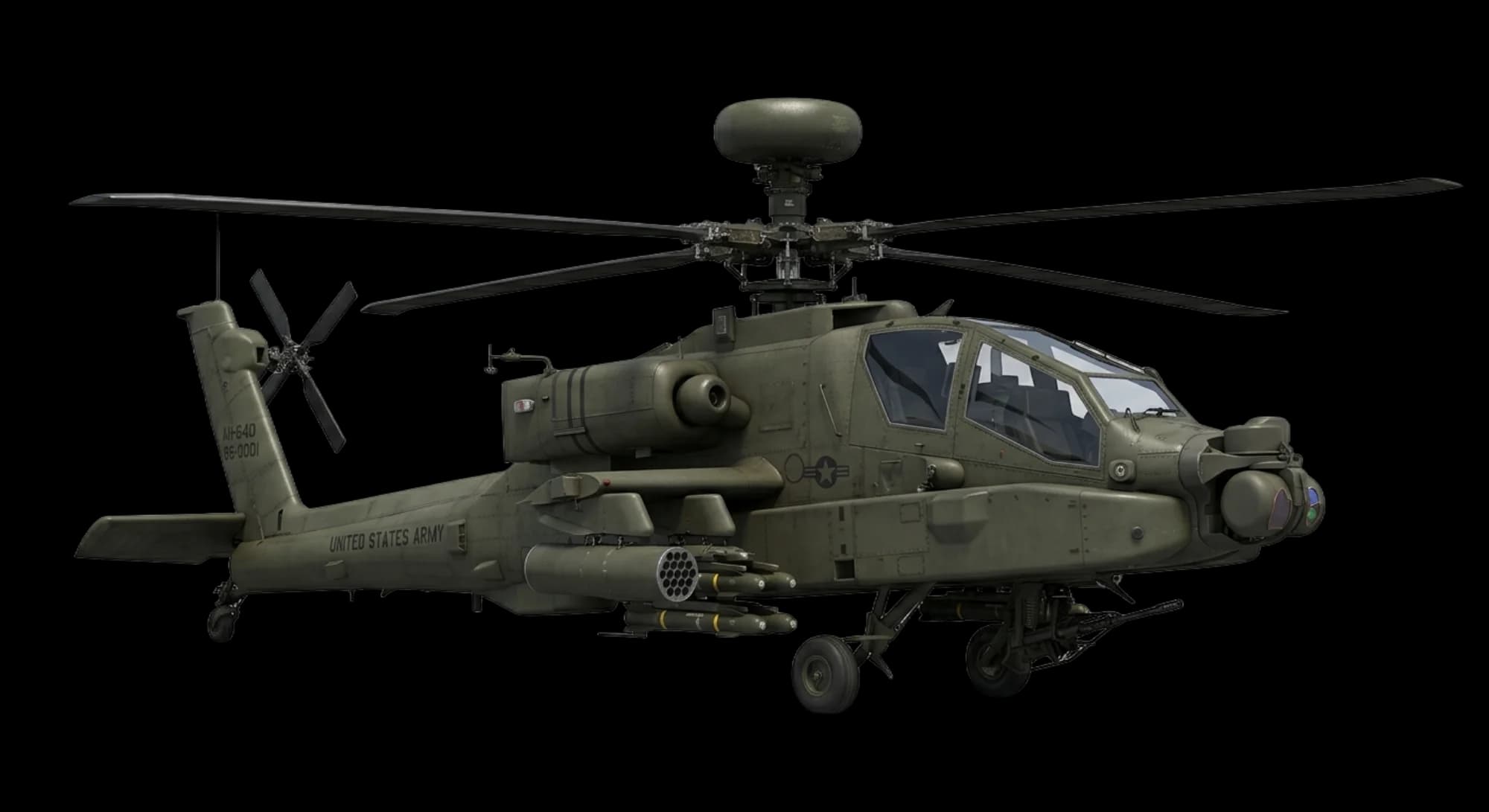

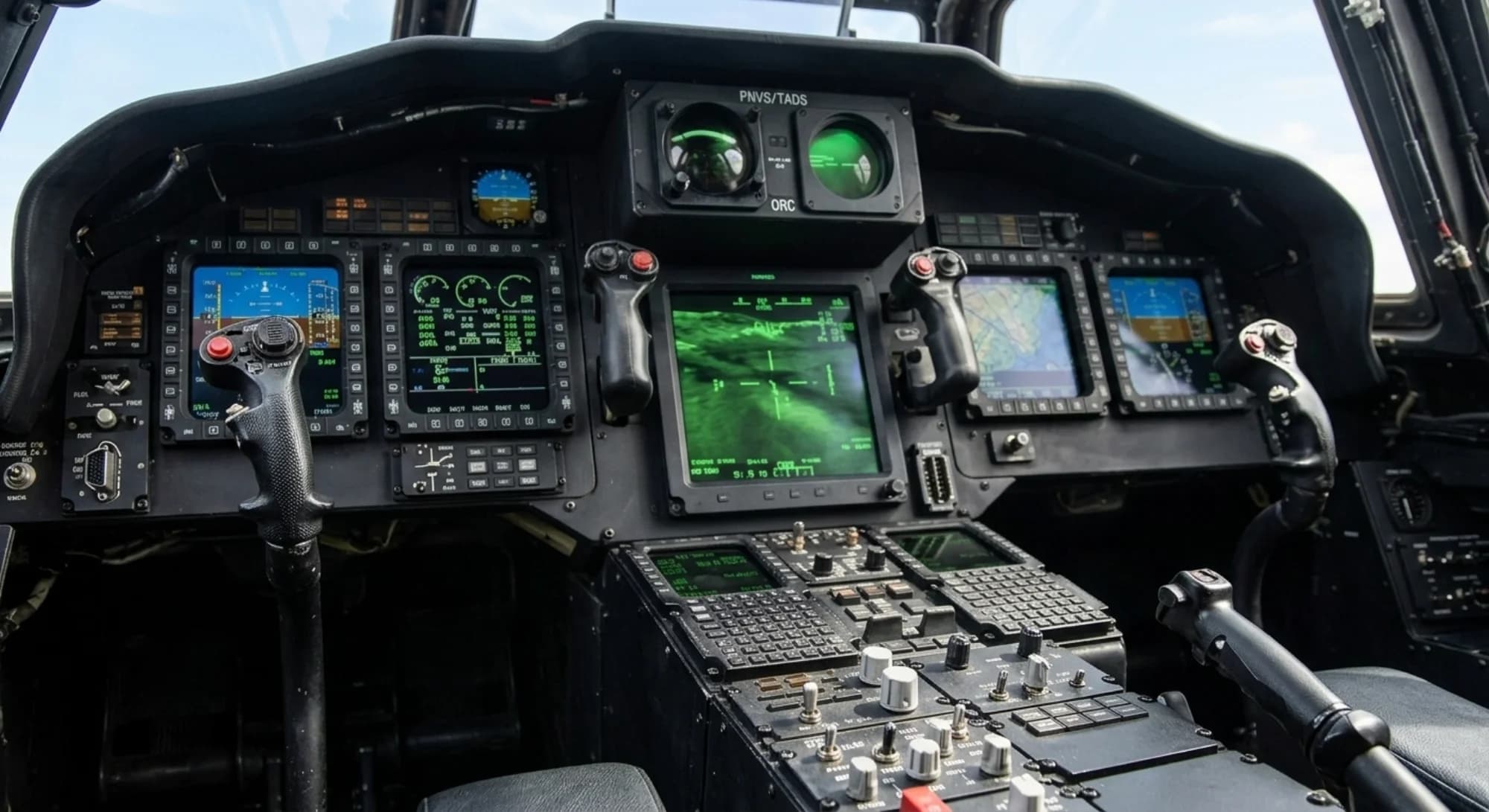

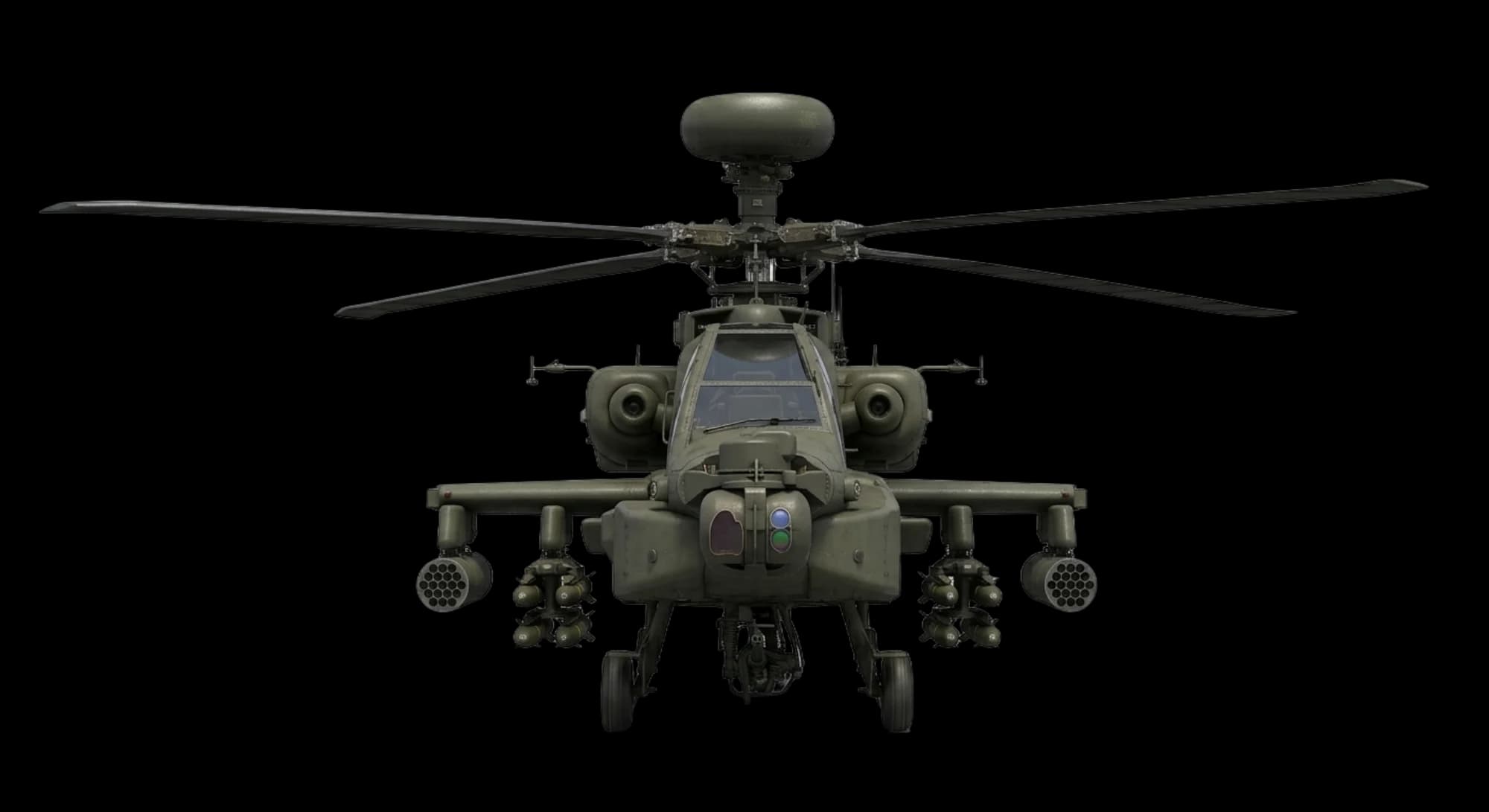

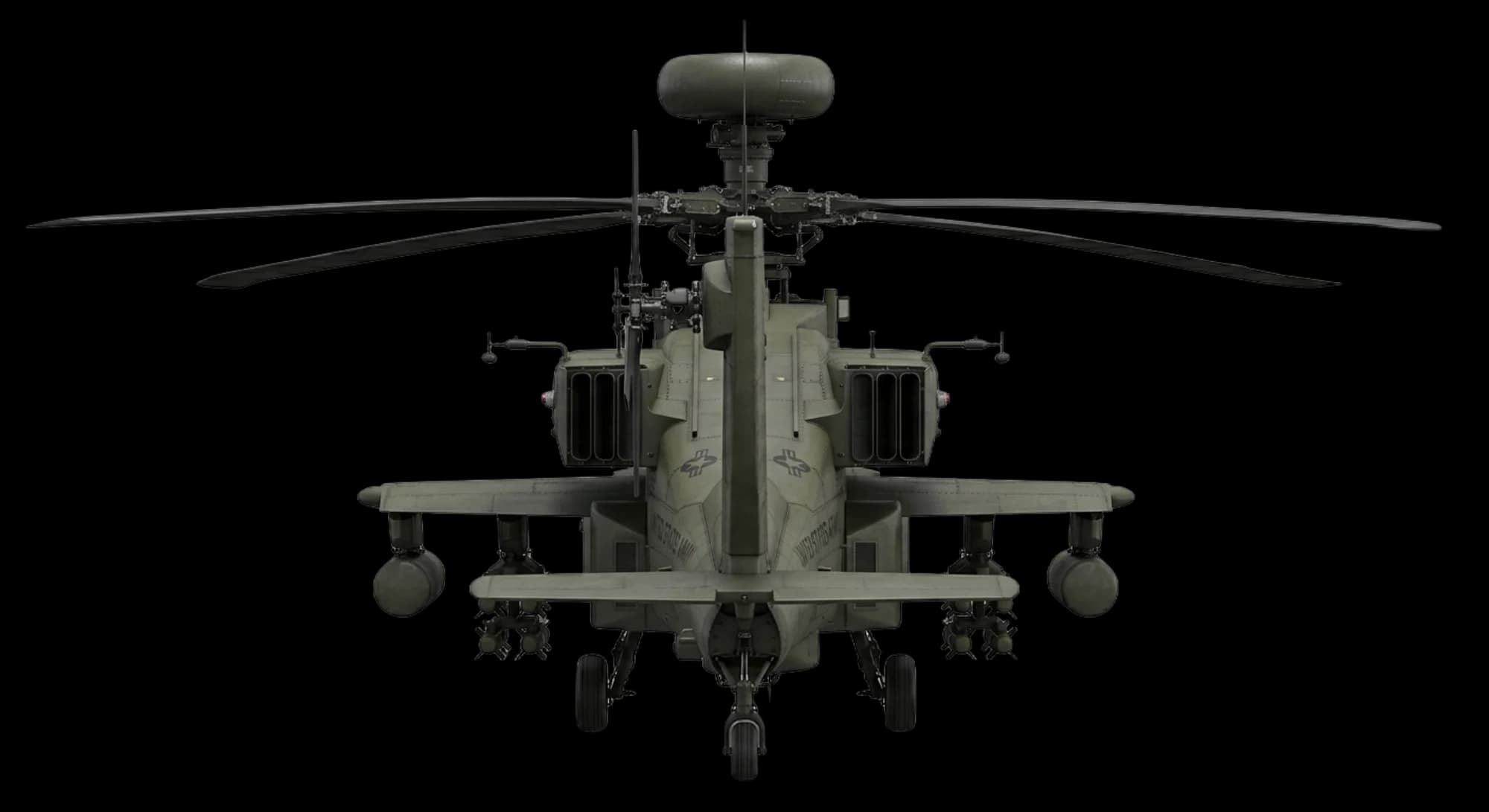

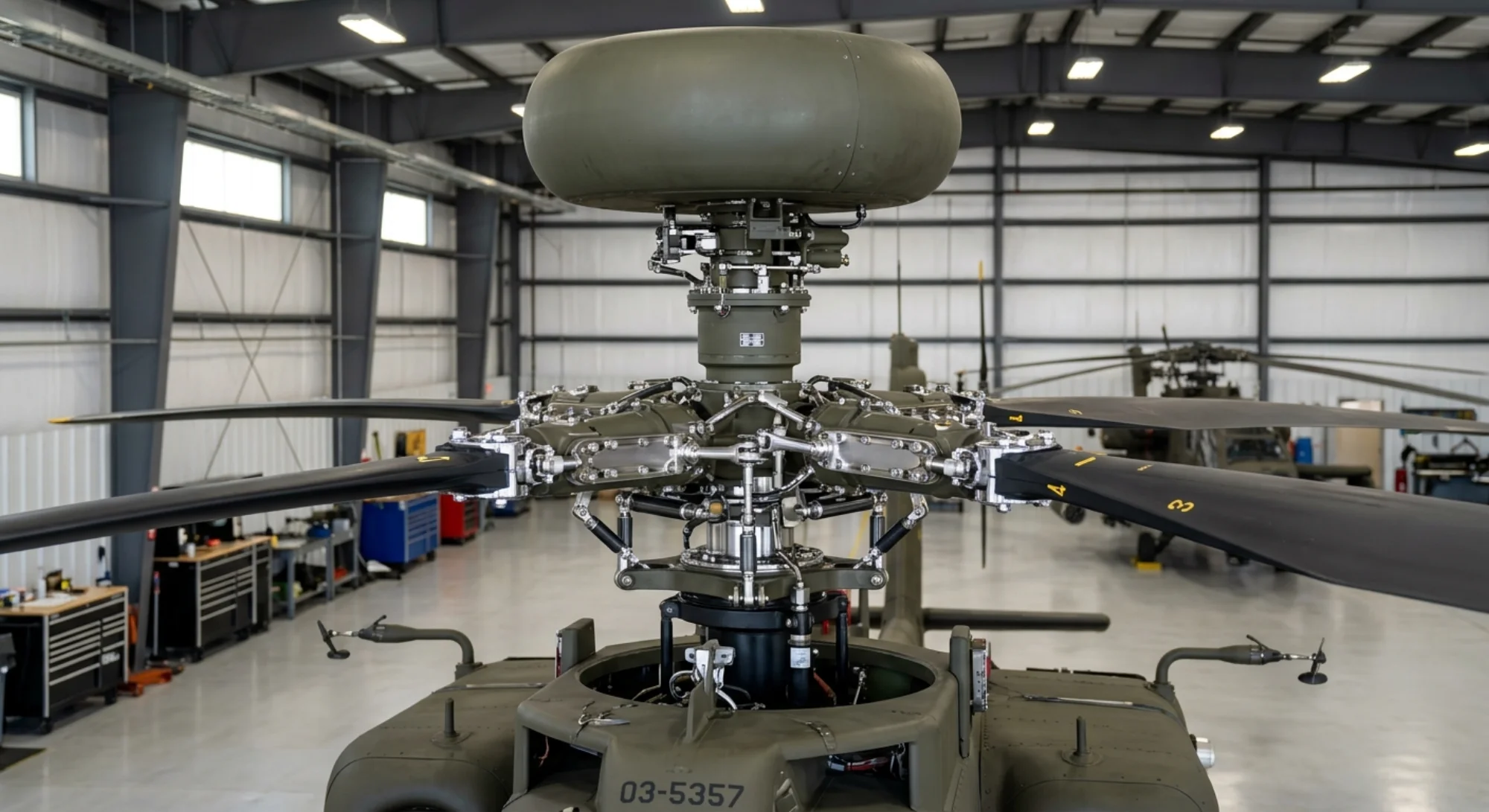

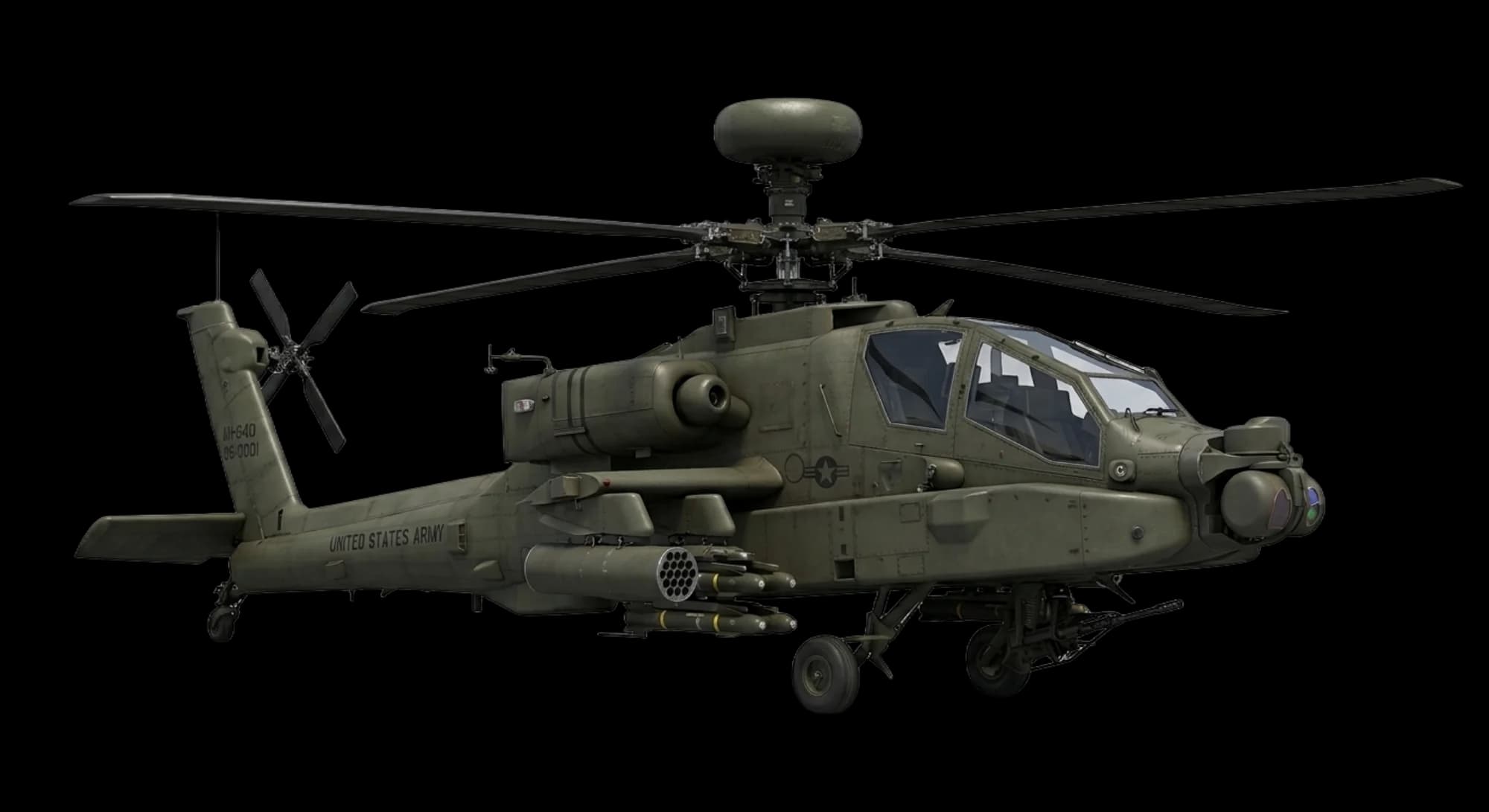

Boeing AH-64 Apache 1975 - Front 3/4 viewBoeing AH-64 Apache 1975 - Front viewBoeing AH-64 Apache 1975 - Profile viewBoeing AH-64 Apache 1975 - Rear 3/4 viewBoeing AH-64 Apache 1975 - Rear viewBoeing AH-64 Apache 1975 - Cockpit viewBoeing AH-64 Apache 1975 - Instrument Detail viewBoeing AH-64 Apache 1975 - Gun Detail viewBoeing AH-64 Apache 1975 - Rotor Detail viewBoeing AH-64 Apache 1975 - Weapons view
Front 3/4
First of its kind

The worlds most advanced and most heavily armed attack helicopter. The primary aerial tank-killer for the US Army and a dozen allied nations.

History

The Boeing AH-64 Apache was developed to replace the AH-1 Cobra as the US Armys primary attack helicopter. Its integrated Target Acquisition Designation Sight and Pilot Night Vision Sensor gave it an unprecedented night-fighting capability. The Apache proved devastating in the 1991 Gulf War, where a flight of eight AH-64s fired the opening shots of the war by destroying Iraqi radar sites. The Longbow variant added a mast-mounted millimeter-wave radar capable of tracking 128 targets simultaneously. Over 2,400 have been built, and the Apache serves as the backbone of attack helicopter fleets in 17 nations worldwide.

Timeline

1975First flight
1991The Apache proved devastating in the 1991 Gulf War

Production & Heritage

Production Total2,400
DesignerHughes Helicopters design team
Service Period1975

Technical Specifications

Engine2x General Electric T700-GE-701D turboshaft
Max Speed182 mph
Range257 nm
Ceiling21,000 ft
Crew2
Wingspan48.2 ft
Length58.2 ft
Empty Weight12,825 lbs
Max Weight23,000 lbs

Engine Details

Engine ModelGeneral Electric T700-GE-701D
Engine Count2
Engine ManufacturerGeneral Electric
Horsepower1890 hp

Performance

Cruise Speed165 mph
Rate of Climb2500 ft/min

Weights

Max Takeoff Weight23,000 lbs

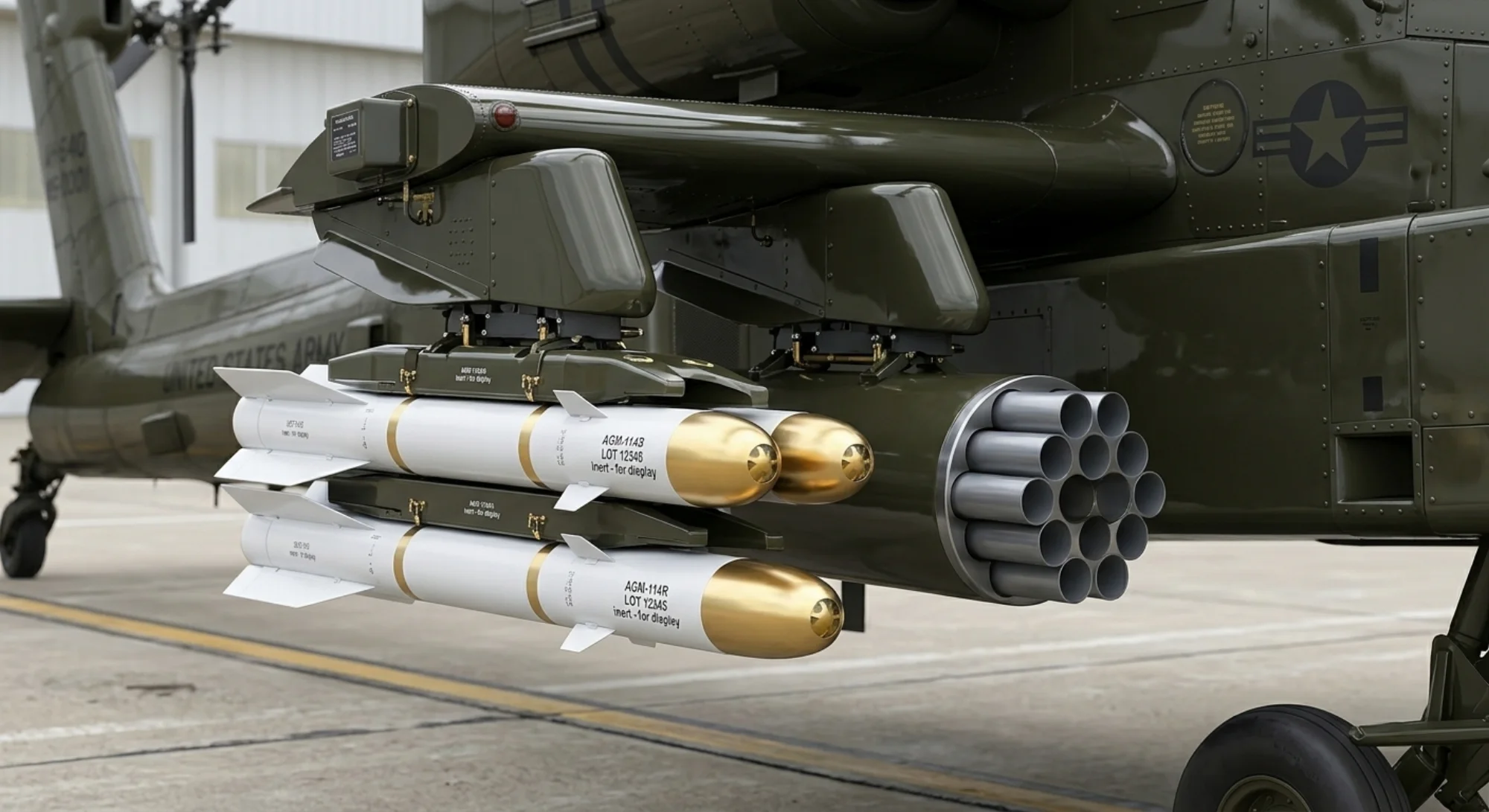

Armament

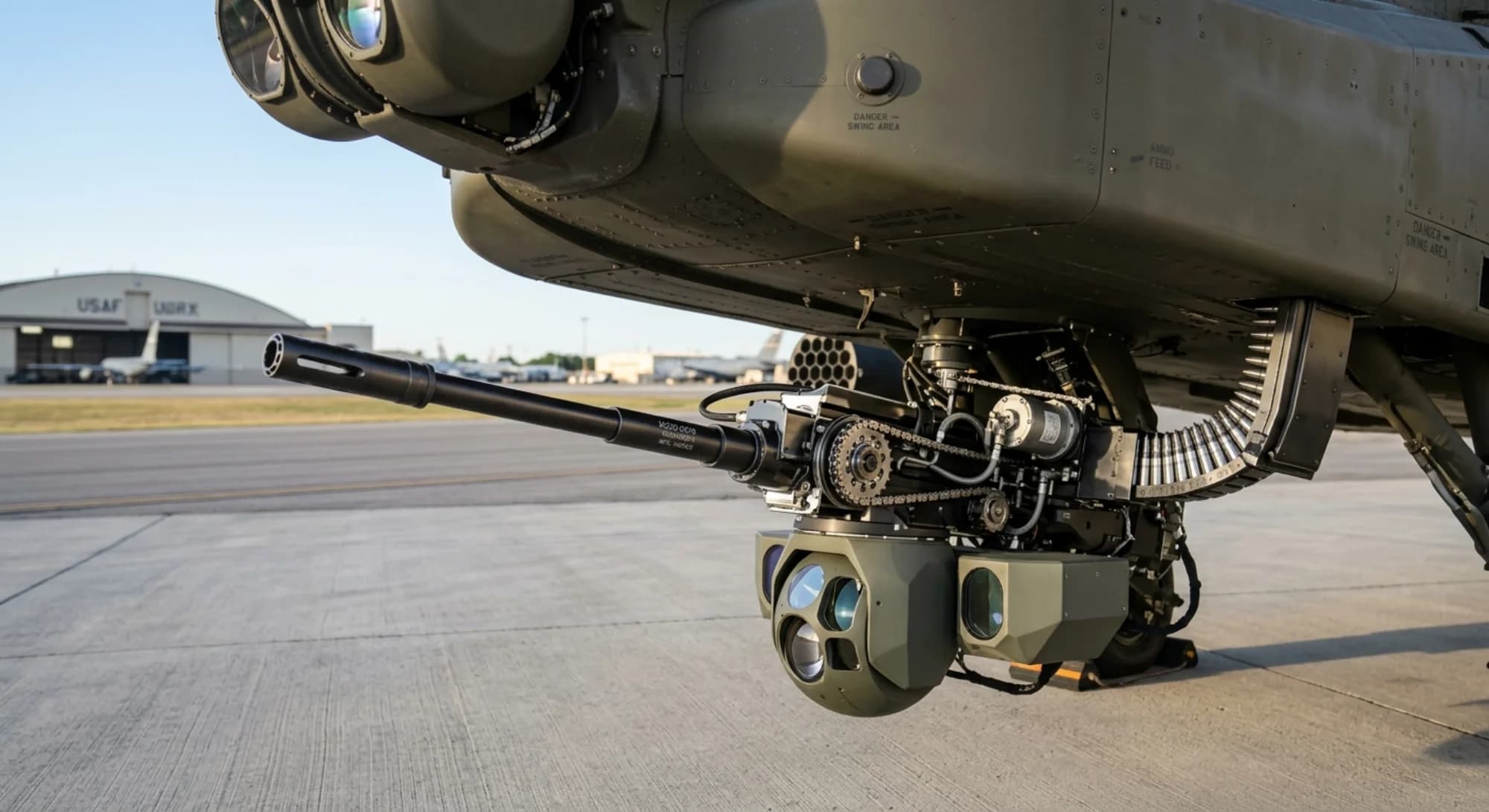

Guns1x 30mm M230 chain gun (1,200 rounds)
Missiles16x AGM-114 Hellfire anti-tank missiles
Bombs4x 19-tube Hydra 70 rocket pods

Capacity

Crew2

Tags

Designed by Hughes Helicopters design team
